Centralized & Secured Attendance System
The single/dual door unit smartXS NG Plus – SMNG220-POE is the backbone of medium-scale security systems handling up to 35,000 users and 1,00,000 transactions.
Compact Design
32 Bit RISC Processor
Weigand In
TCP / IP
2 Door 4 Reader
CCTV Integration * (through Software)
2 Door 4 Reader
TCP / IP
32 Bit RISC Processor
Compact Design
Weigand In

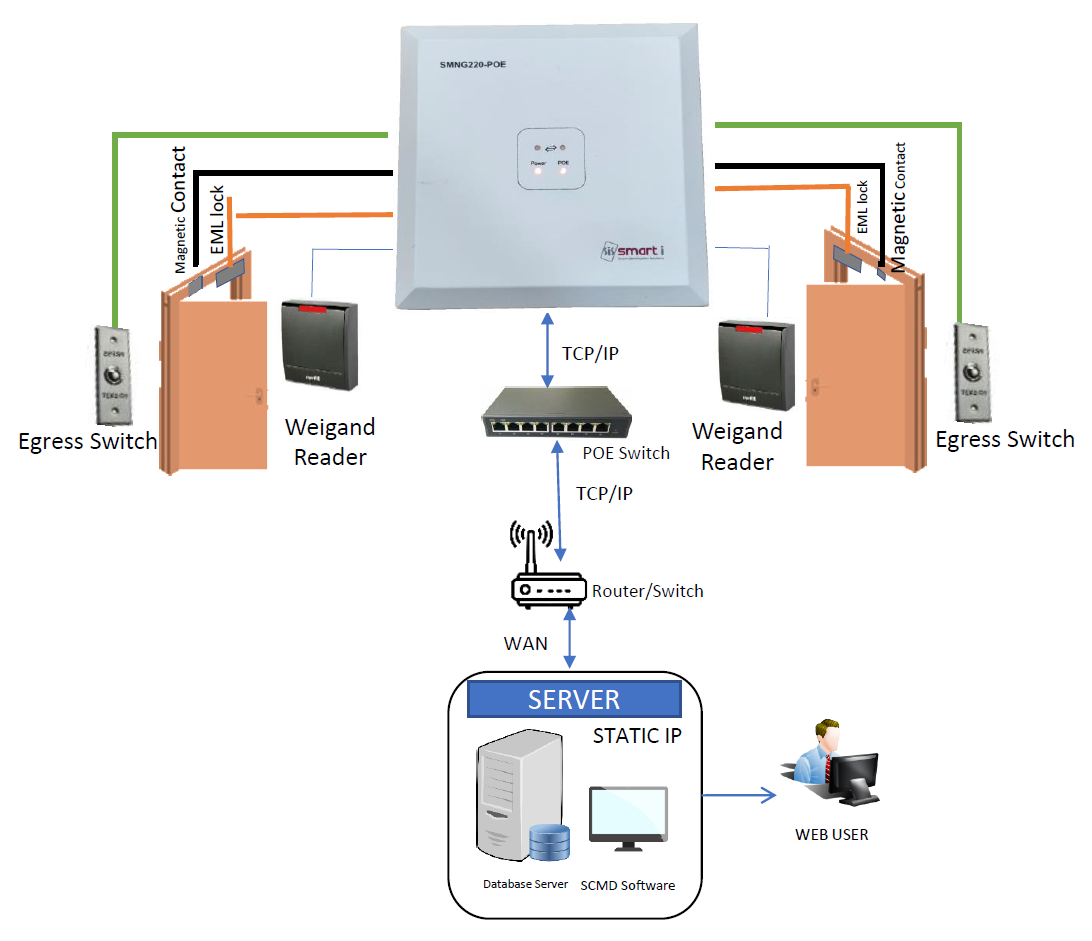

Seamless integration with third-party readers
The smartXS NG Plus – SMNG220-POE system can be seamlessly integrated with a varied range of RFID Proximity, Smartcard, PIN, PIN & PROX, and biometric readers with numerous selections of RFID credentials.
Battery backup
The smartXS NG Plus – SMNG220-POE offers a power supply with the provision of battery backup inside the cabinet.
Product Selection Guide
The base code, smartXS NG Plus – SMNG220-POE, represents the product’s core description. Elements after the hyphen denote additional specifications: For example, “22” for 2-door & 2-reader setup, “POE” for supporting POE functionality.
SMNG220-POE
Multidoor Controller (Access Controller)
2 Door
2 Reader
TCP/IP
Card Type
Reader
Reader
- Proximity
- Smart Card
- HID I Class
- HID Proximity
- Multi Card
Additional Communication
- POE
Device Screen
Size
Size
- No Display
- 5 Inch
- 7 Inch
- 8 Inch
Detection/
Others
Others
- Temperature
- 26 Bits
- 32 Bits
SMNG220-POE
Accessories Integrated with SMNG220-POE
Cards
Accessible cards with smartXS NG plus
SC-M1
Mifare – Smart Card
(Memory:1K)
SC-M4
Mifare – Smart Card
(Memory:4K)
PC
EM Proximity Cards
Readers
Readers available with smartXS NG plus
SPR501
smartRID – Wiegand Protocol Card Readers (proximity reader)
SC504
smartRID – Wiegand Protocol Card Readers (smart card reader)
Locks & Switches
Switch accessories that aligns with smartXS NG plus
EL-600
600lbs- electromagnetic locks
SIS-ES-NT
No Touch Egress Switch
SIS-ES-PUSH
Door Release Button
Frequently Asked Questions
The SMNG220-POE comes with a flash memory of upto 4 MB.
The SMNG220-POE can store upto 35,000 user records.
The device can handle upto 1,00,000 events/ transactions.
Yes, it comes with a fire integration facility.
