smartSLIK

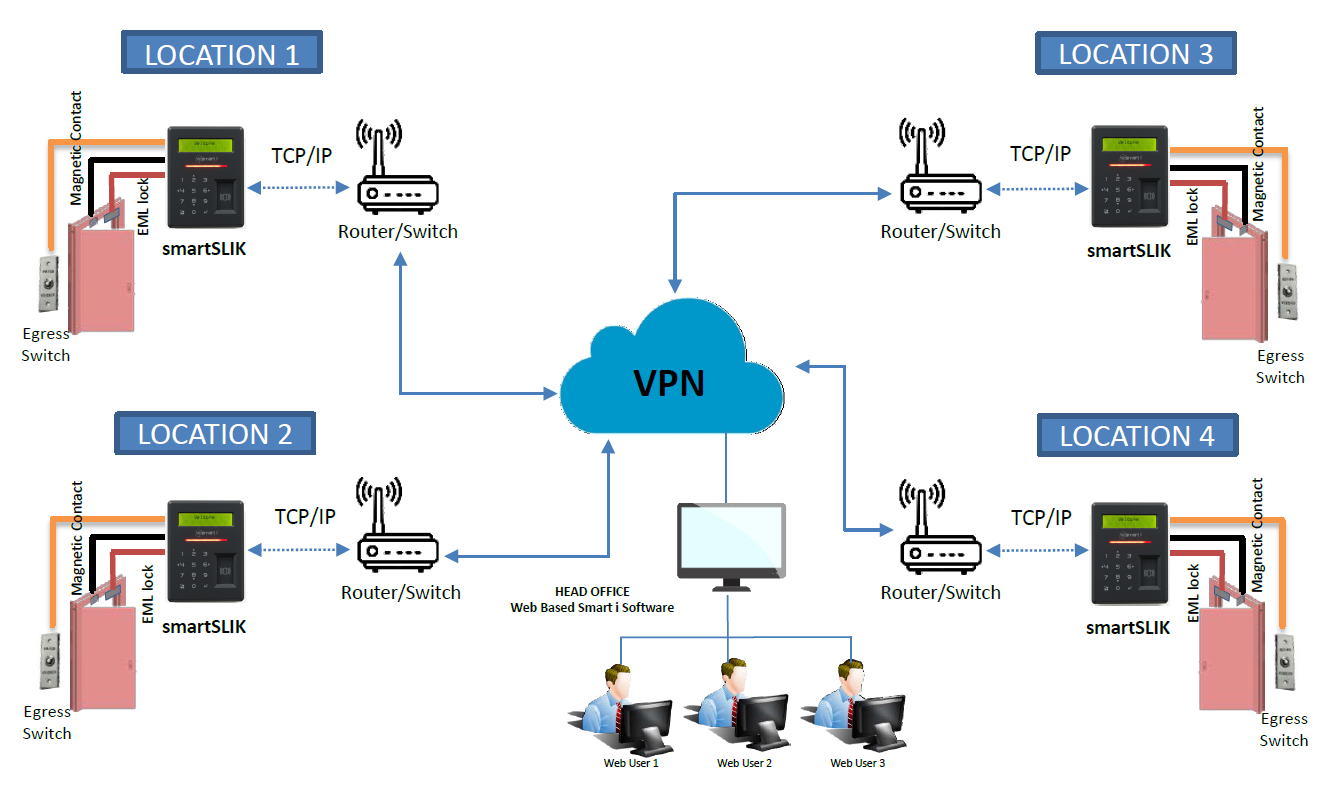

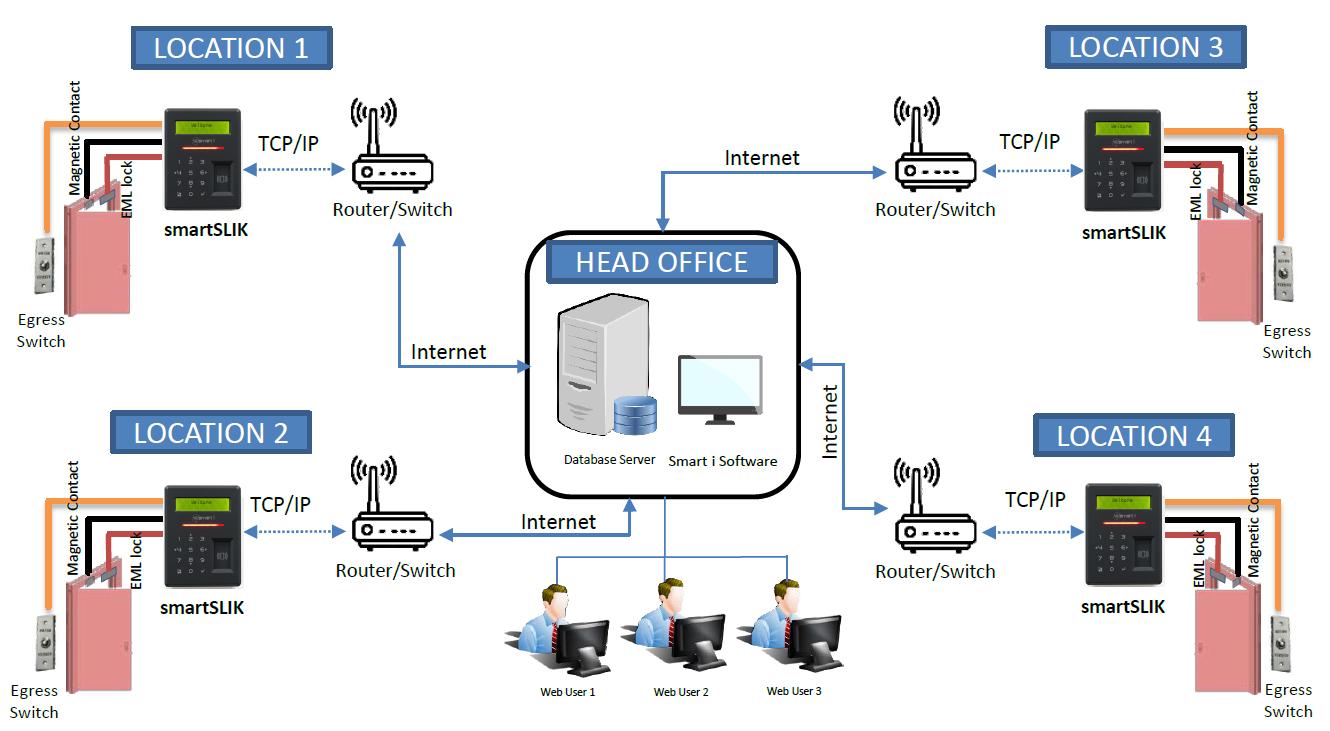

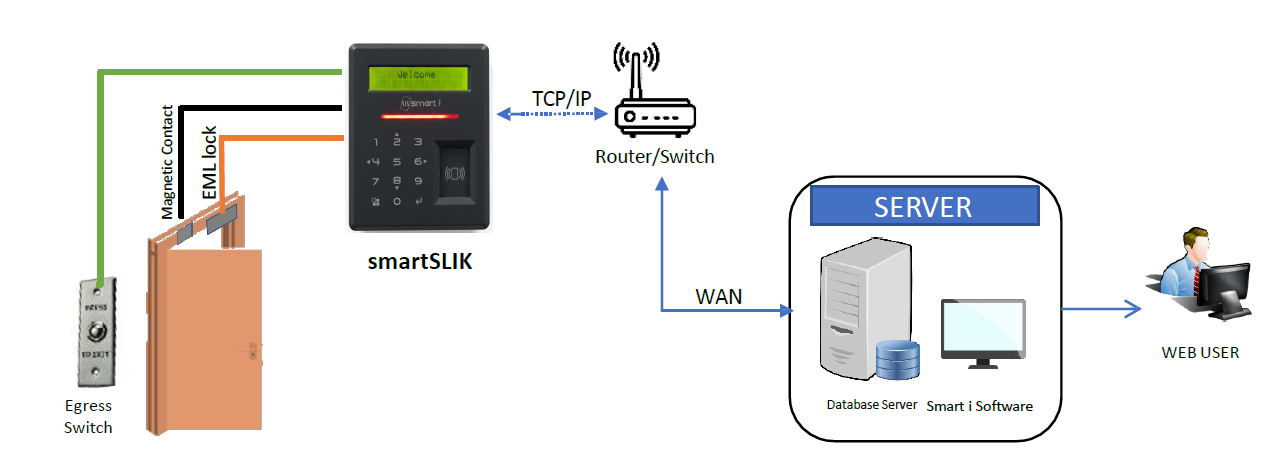

Card + Pin Based Terminal for Multi-location Attendance & Access Management
- Sleek Design for Perfect mounting on Door frame.
- Multiple RFID technology for flexibility to use wide range of access Credentials.
- Bicolour LED Indication
- Pigtail Termination
Limitless Possibilities With Smart-i Systems
This device is compatible with all types of third-party HR attendance management software. The icing on the cake is that this attendance management system comes enabled with WiFi.
Multiple RFID
Sleek Design
CCTV Integration* (through Software)
16x2 Alphanumeric display
Wi-Fi
GPRS
CCTV Integration
Standalone Biometric
Wi-Fi
2.4" TFT Display
Capacitive Touch
32 Bit RISC Processor
Multiple RFID
Fingerprint Sensor
Weather Proofing
Capacitive Touch
32 Bit RISC Processor
A wide 16x2 Alphanumeric display
The face recognition device comprises a huge16x2 Alphanumeric display screen.
A Sleek & Elegant Design
Our Card + Pin Based Device possesses an ultra-modern look that will add to your office space’s appeal. With a 16×2 Alphanumeric display, it is a perfect device to be mounted on the entrance.
Product Selection Guide
The base code, STSLK005, represents the product’s core description. Elements after the hyphen denote additional specifications: For example, “S” for smart card.
STSLK005
Card Based Standalone Controller
Upto 500 Users
Wi-Fi
Reader
- Proximity
- Smart Card
- HID I Class
- Multi Card
Additional Communication
- Wi-Fi
Size
- No Display
- 5 Inch
- 7 Inch
- 8 Inch
Others
- Temperature
- 26 Bits
- 32 Bits
smartSLIK - STSLK005



Accessories Integrated with SmartSLIK
Cards
Accessible cards with SmartSLIK
SC-M1
Mifare – Smart Card
(Memory:1K)
SC-M4
Mifare – Smart Card
(Memory:4K)
PC
EM Proximity Cards
Locks & Switches
Switch accessories that aligns with SmartSLIK
EL-600
600lbs- electromagnetic locks
SIS-ES-NT
No Touch Egress Switch
SIS-ES-PUSH
Door Release Button
Frequently Asked Questions
The smartSLIK has storage with a capacity of storing upto 500 user records.
smartSLIK comes with three operation modes; Card Only and Card+Pin.
Learn more about Smart-i Systems
Tech Support
Commitment to excellent technical support, our customers rely on us for prompt assistance and expert guidance whenever they need it.
Licensing
License-based products with the assurance of regular support and updates, ensuring quick access to the latest features and assistance.
Contact Us
Allow our expertise to help you select the ideal security solution, customized to your unique requirements, for comprehensive security and privacy.
TECHNICAL SPECS - smartSLIK
Model No
STSLK005
Application
Access & Attendance
CPU
32 Bit Arm Cortex M4 Processor
Memory
Upto 64 KB Flash
Events/Transactions
2500
Users
500
Fingerprint Templates
NA
Operation Modes
Only Card, Card + Pin
Inbuilt Card Reader Options
EM Proximity | Mifare / Smart Card |
HID iClass
Exit Port
Egress Switch
Wiegand In/Out
Available (26/32/34Bit)
Communications Port
RS485, Wi-Fi
Baud Rate
9600bps (Default)
Input/Output
2 I/P (Door Status, Egress)
& 1 O/P (Door lock)
Controller ID
Up to 9999
Display
16x2 Alphanumeric display
Keypad
Capacitive Touch Sense Keypad
LED
Tricolour LED Bar
Sound
Beep & Buzzer Sound
Power Supply
12 V DC/ 2A
Enclosure
ABS Material
Dimension (LxHxW) in mm
92 x 118 x 35.5
Mounting
Wall Mounting
Facility Code
Available with Card Reader
Time Zone / Access Levels
63 + 1 (Free Time Zone) / Unlimited
Time Zone Slots Levels
4 slots per Day
Anti- Passback
Hard, Soft, Escort (Reader Wise)
Holiday Settings
42
Certification
CE,ROHS
